Configure once. Upgrade whenever ❤

Framework Laptop 16 is an endlessly customizable laptop with upgradeable graphics, powered by NVIDIA® GeForce RTX™ 5070 and AMD's latest Ryzen™ AI 300 Series processors.

Framework Laptop 16. Upgraded! (Again)

Featuring a new AMD Ryzen™ 5 340 processor option, Smoke Gray Bezel, as well as optional One Piece Haptic Touchpad and One Piece Keyboard modules.

Introducing NVIDIA® GeForce RTX™ 5070 Laptop GPU graphics

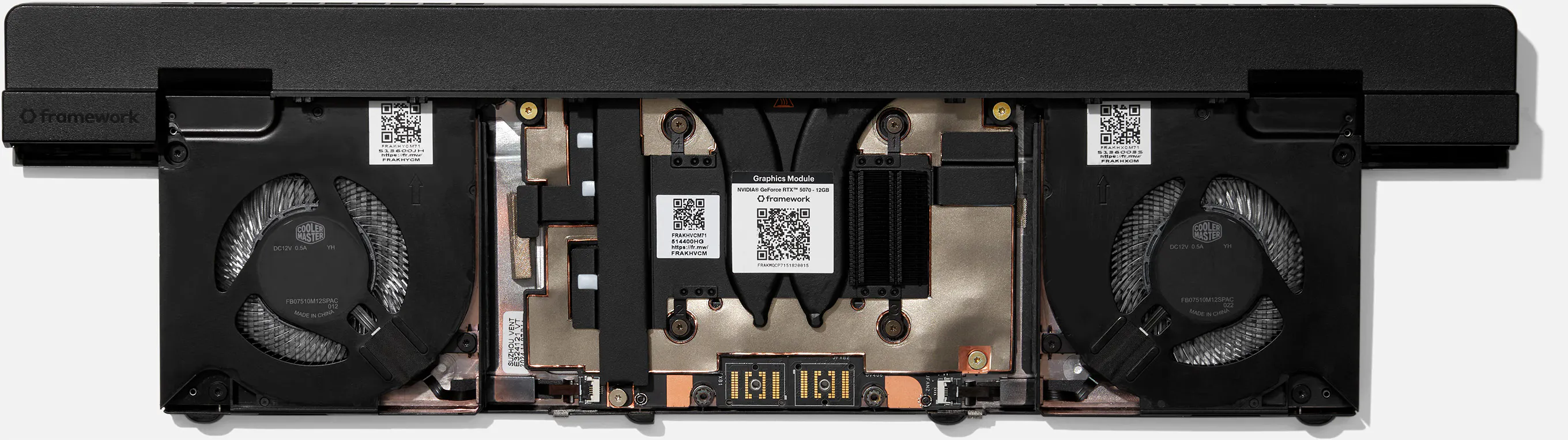

Top-down studio shot of a Framework Laptop 16 NVIDIA® GeForce RTX™ 5070 graphics module.

12GB GDDR7 memory

798 AI TOPS performance

2.0GHz base clock, up to 2.4GHz boost.

USB-C and display output charging now supported via rear USB-C port.

CUDA enabled

G-SYNC support

One Piece Haptic Touchpad Module

We’ve redesigned the touchpad on Framework Laptop 16 with a new optional One Piece Haptic Touchpad, featuring haptic feedback and a full-width CNC aluminum palmrest structure. Four piezo haptic elements deliver precise, adjustable click force and feedback across a 124.0 × 77.0mm touch surface, for consistent response edge to edge.

Top down studio shot of a Framework Laptop 16 One Piece Haptic Touchpad Module

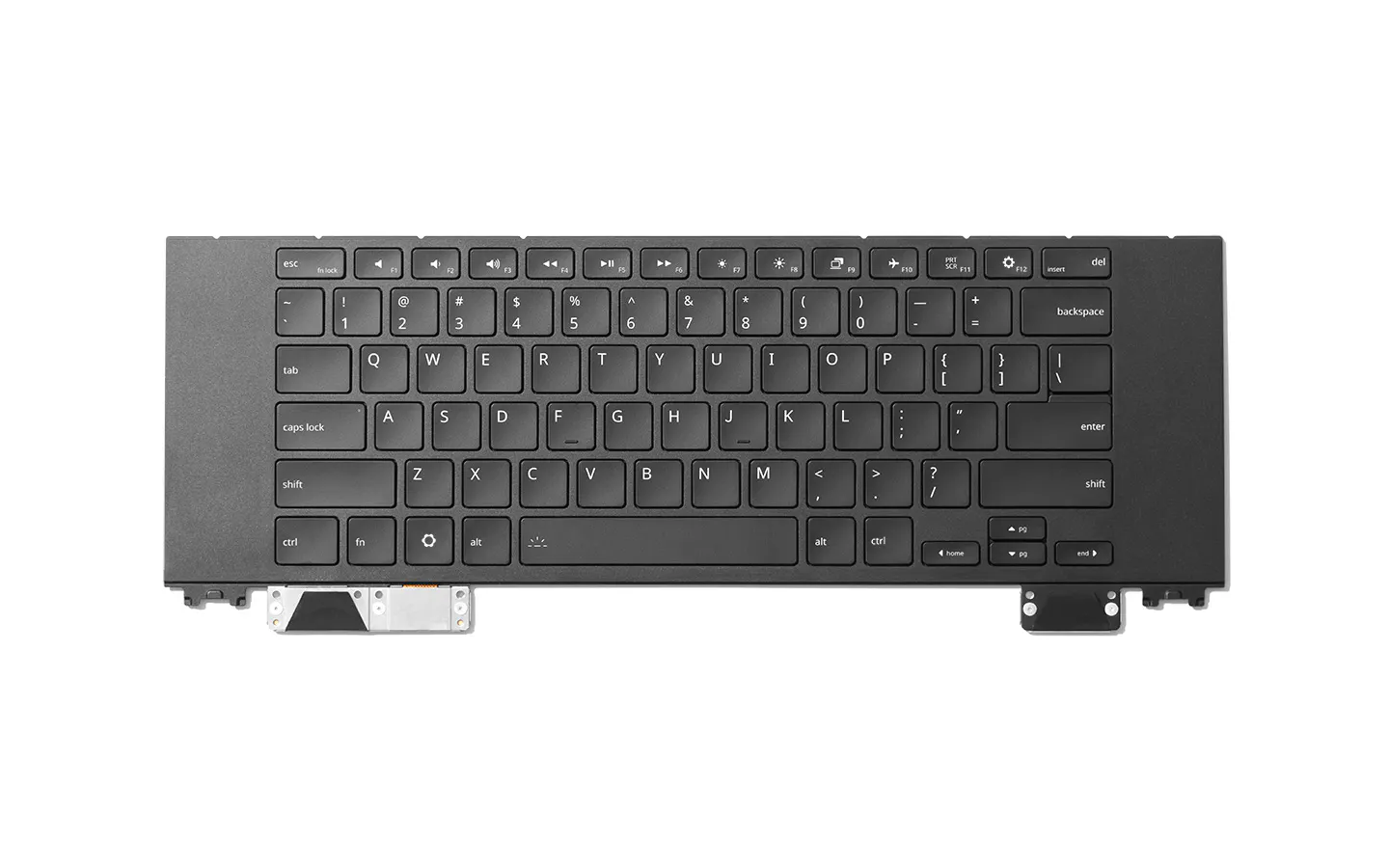

One Piece Keyboard

For a more seamless input experience, install the One Piece Keyboard in your Framework Laptop 16. It uses the same great feeling key structure with 1.5mm key travel, but eliminates the need for spacers by covering the full width of the input area with a black anodized aluminum lattice. Available in US English only.

Top down studio shot of a Framework Laptop 16 One Piece Keyboard

Translucent Bezel

The Smoke Gray Translucent Bezel features a semi-transparent finish that reveals a hint of the display structure beneath.

Top-down studio shot of a translucent charcoal bezel for Framework Laptop 16

Framework Laptop 16. Upgraded!

Featuring new AMD Ryzen™ AI 300 Series processors, NVIDIA® GeForce RTX™ 5070 Laptop GPU graphics, Wi-Fi 7, and so much more.

Introducing NVIDIA® GeForce RTX™ 5070 Laptop GPU graphics

Top-down studio shot of a Framework Laptop 16 NVIDIA® GeForce RTX™ 5070 graphics module.

8GB GDDR7 memory

798 AI TOPS performance

2.0GHz base clock, up to 2.4GHz boost.

USB-C and display output charging now supported via rear USB-C port.

CUDA enabled

G-SYNC support

Updated 2nd Gen Radeon™ RX 7700S graphics also available

32 compute units

100W TGP performance

8GB 18Gbps GDDR6 memory

USB-C port with DP Alt Mode

Latest generation AMD CPUs

Ryzen™ AI 5 340

Up to 4.8GHz
6 CPU cores/12 threads

4 graphics cores

AMD Ryzen™ AI 7 350

Up to 5.0GHz

8 CPU cores/16 threads

8 graphics cores

AMD Ryzen™ AI 9 HX 370

Up to 5.1GHz

12 CPU cores/24 threads

16 graphics cores

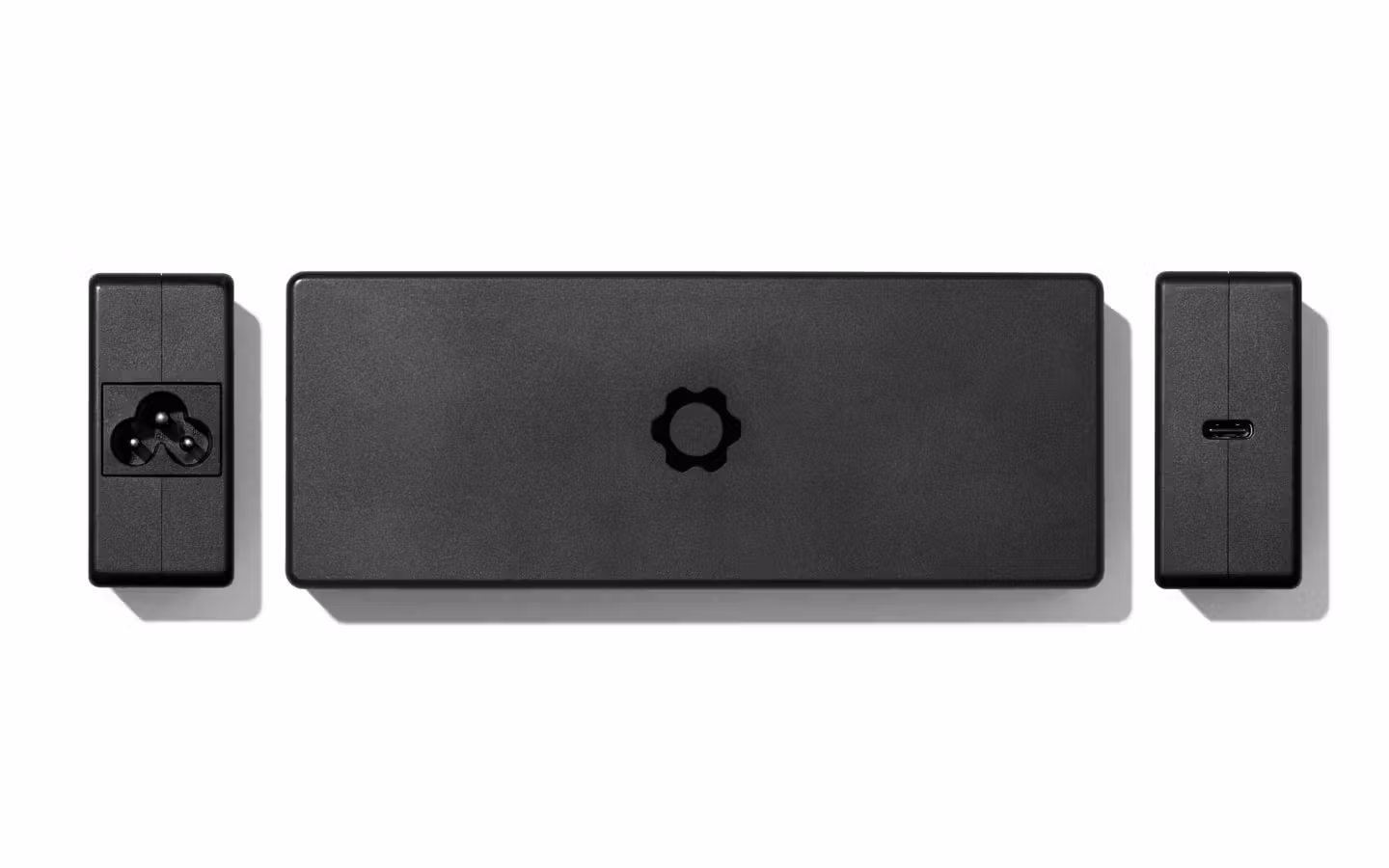

More powerful charging

One of the first 240W USB-C adapters available, designed to support maximum system load while charging the battery.

View details

Top-down studio shot of a 240W USB-C power adapter.

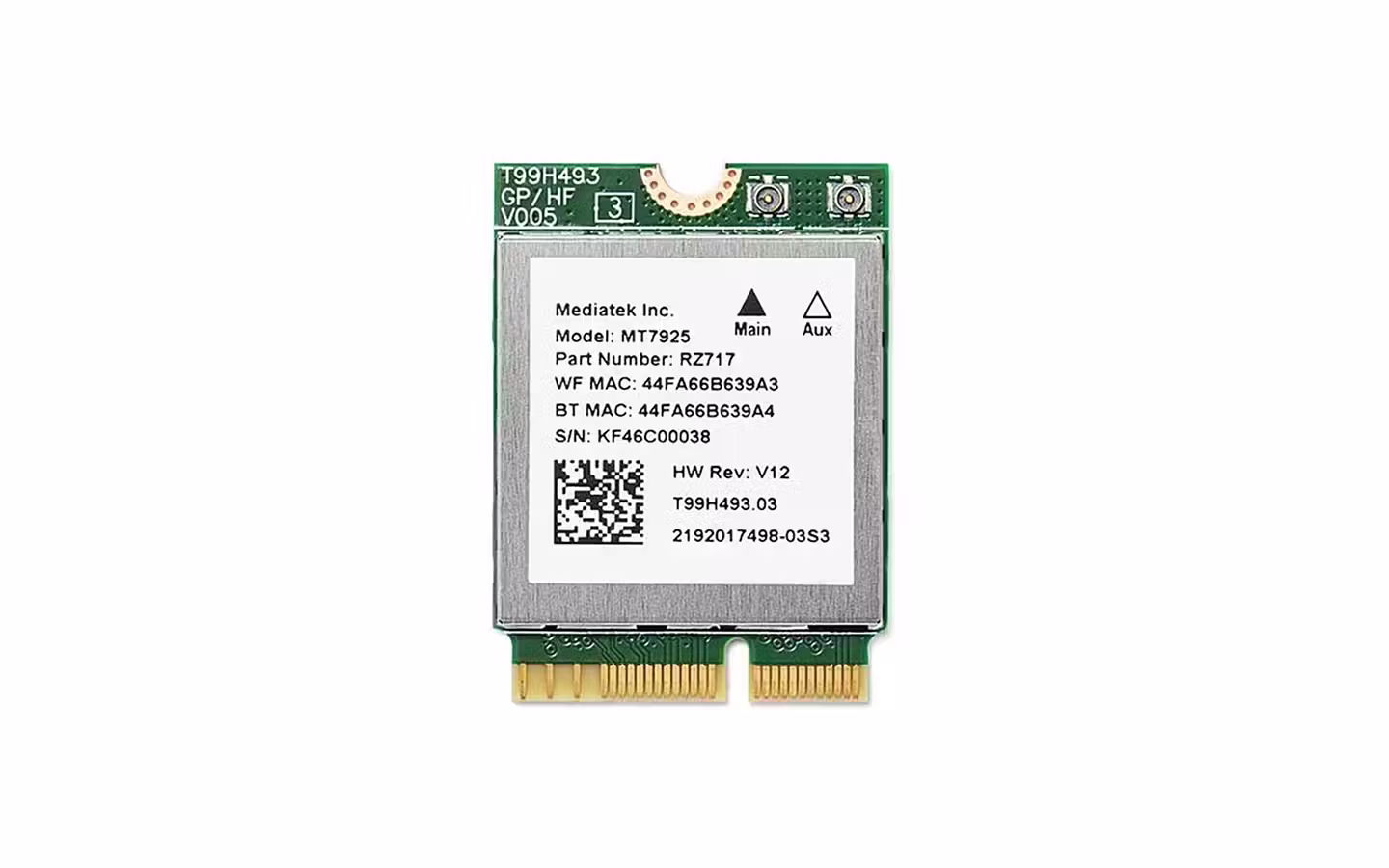

Faster networking

Now with Wi-Fi 7 through AMD's RZ717 wireless module, supporting 6GHz networks with 160MHz channel width. Works out of the box on Linux.

Top-down studio shot of a Wi-Fi 7 card.

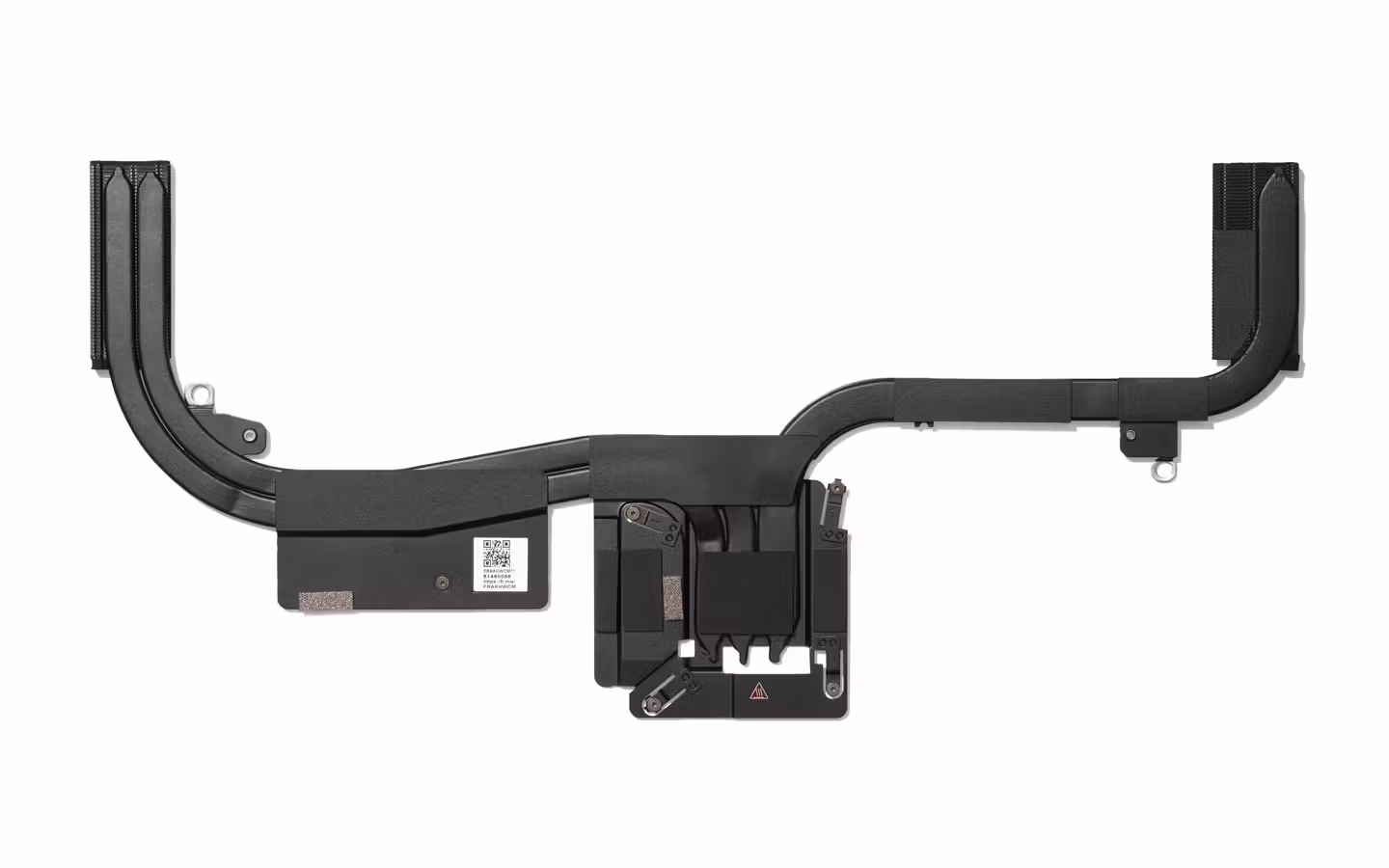

Revamped thermal system

The Framework Laptop 16 features a fully redesigned thermal system with a new heatsink, redesigned fans, and Honeywell phase change thermal material, resulting in cooler, quieter performance and high sustained CPU + GPU power.

Top-down studio shot of a Framework Laptop 16 heatsink.

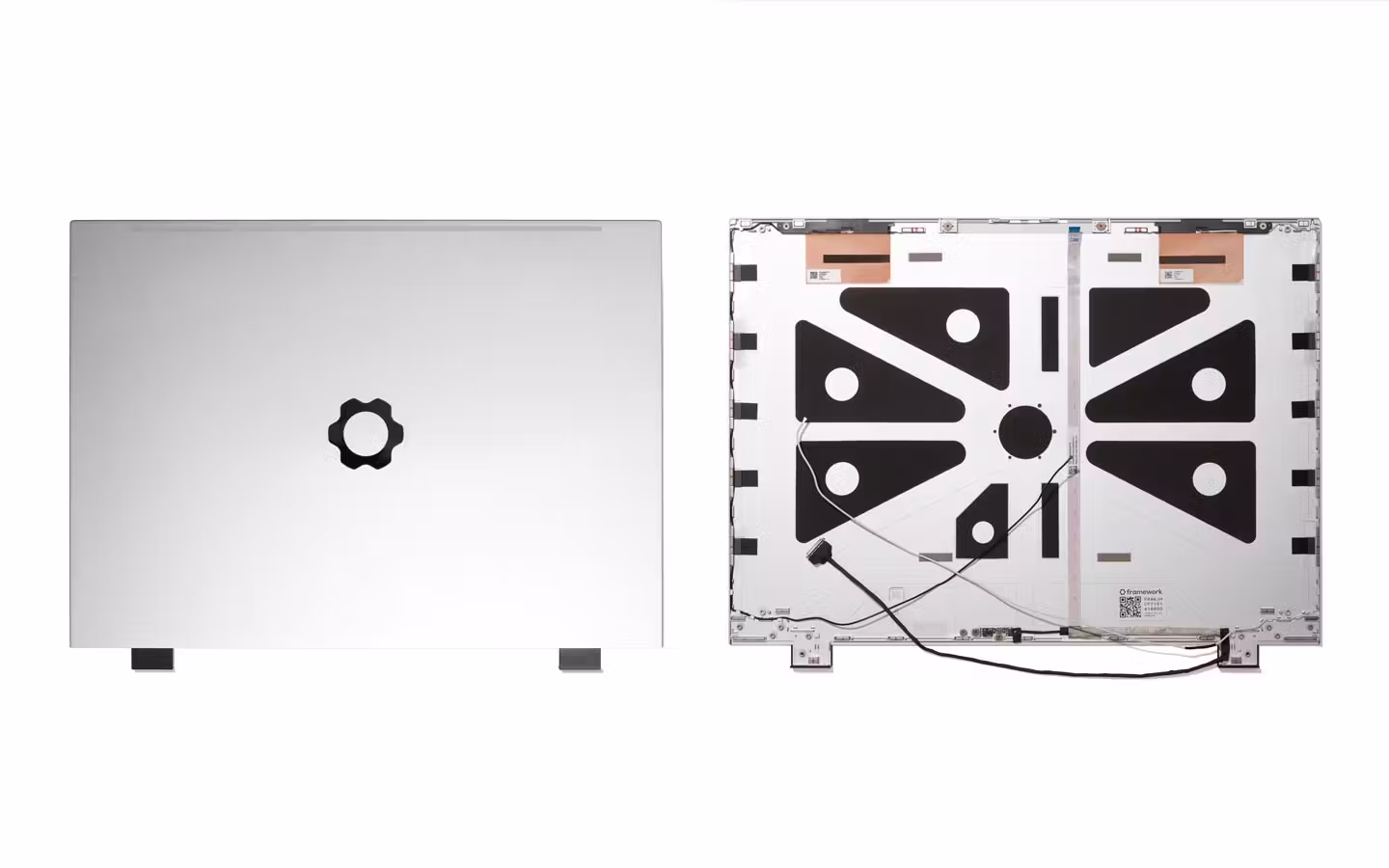

Built to last, not flex

With a new CNC aluminum structure, the Framework Laptop 16 has a redesigned top cover for improved rigidity.

Top-down studio shot of a Framework Laptop 16 Top Cover (exterior and interior perspective).

Choose your ports

External adapters are a thing of the past. The Framework Expansion Card system lets you choose exactly the ports you want and where you want them. Now supporting display output on four of the six slots.

An upside-down Framework Laptop 16, focused on six Expansion Card slots, with a hand installing a translucent-white USB-C card.

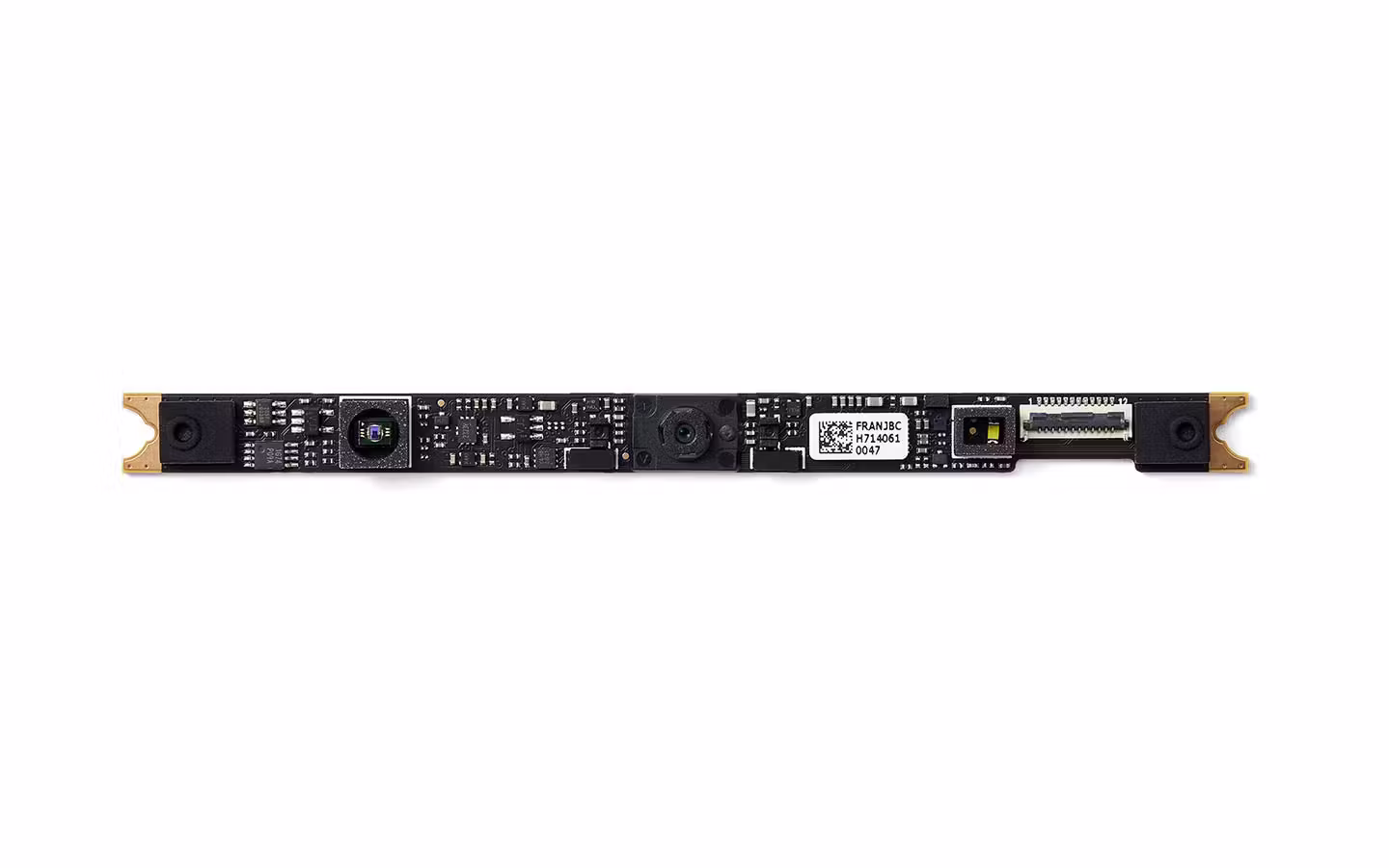

Improved Webcam Module

The Webcam Module (2nd Gen) now includes a built-in microphone and a large, high-resolution 1080p OmniVision sensor for clearer video across a wide range of angles and lighting.

Top-down studio shot of a Framework Laptop 16 2nd Gen Webcam Module.

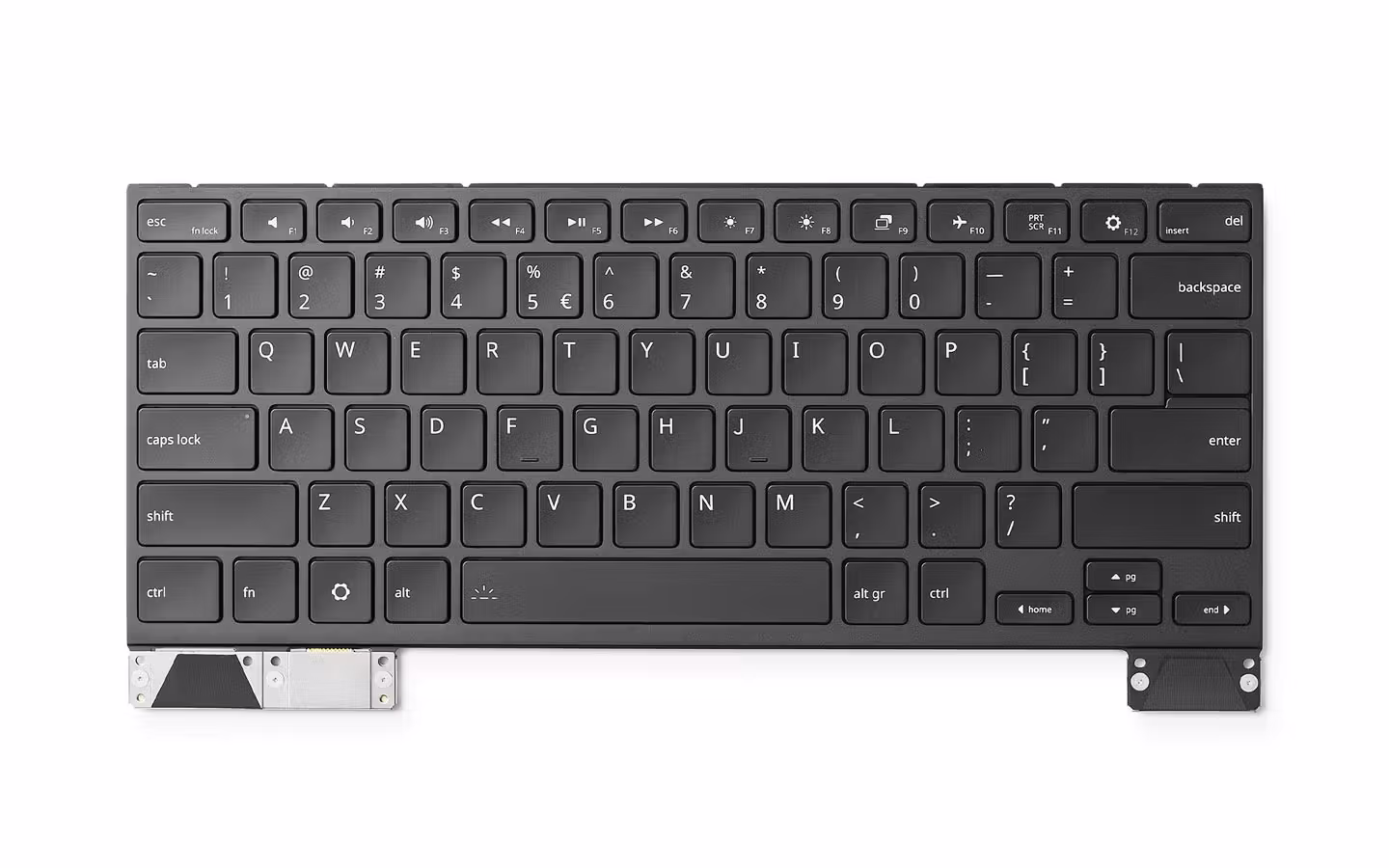

Refreshed design. Smarter firmware.

The 2nd Gen Keyboard retains the same hardware as the 1st Gen but introduces refreshed artwork and updated firmware, which includes a fix to prevent the system from waking while carried in a bag. If you already have a 1st Gen Keyboard, we will release a firmware update to enable the same functionality.

Top-down illustration of a Framework Laptop 16 keyboard module.

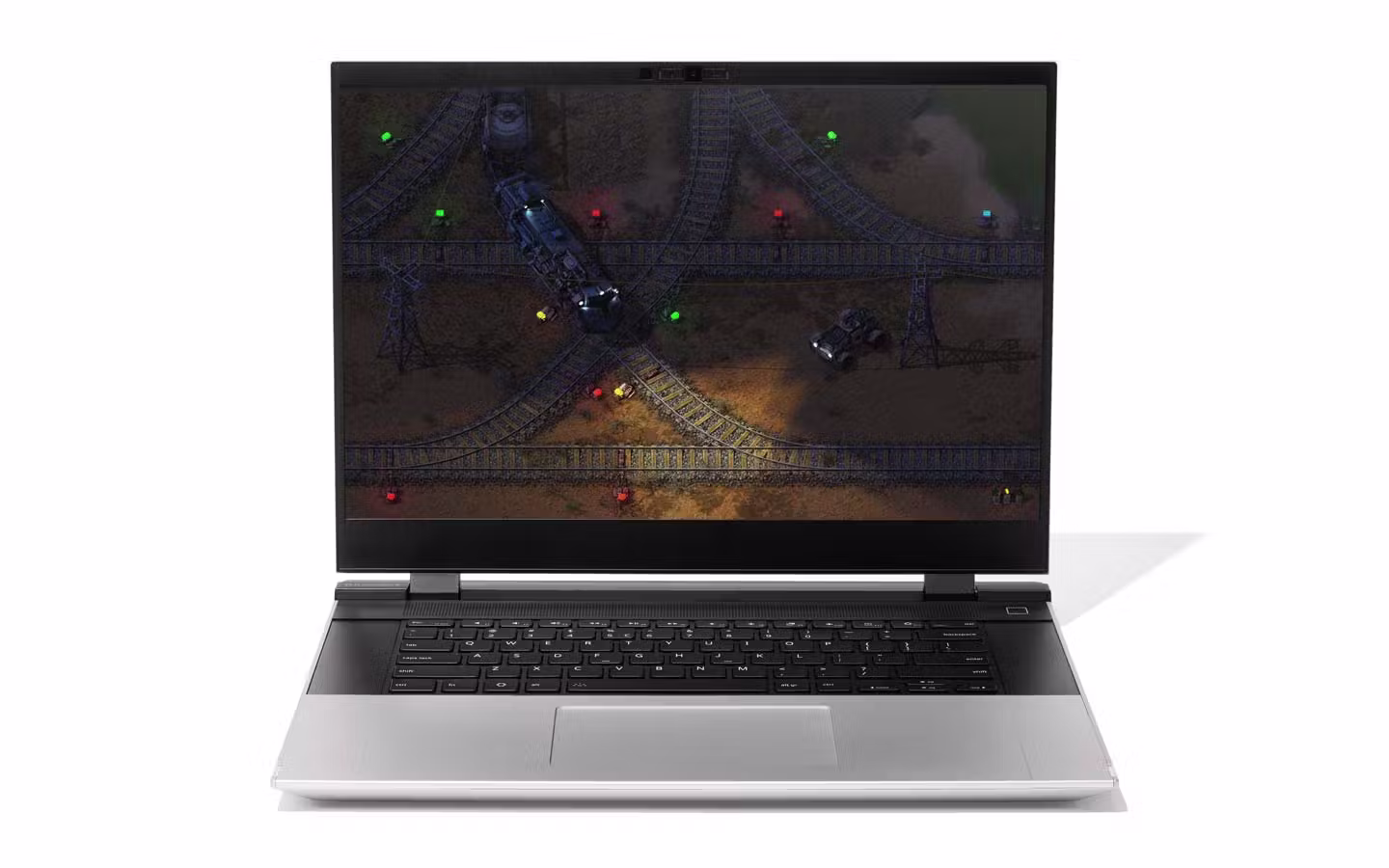

G-SYNC enabled

The Framework Laptop 16 Display now includes updated firmware for NVIDIA G-SYNC. G-SYNC works by synchronizing the display’s refresh rate with your NVIDIA Graphics Module, eliminating screen tearing and minimizing stutter and input lag for sharper visuals, smoother gameplay, and a better overall experience.

Straight-on studio shot of a Framework Laptop 16 showcasing the large display with a game on screen.

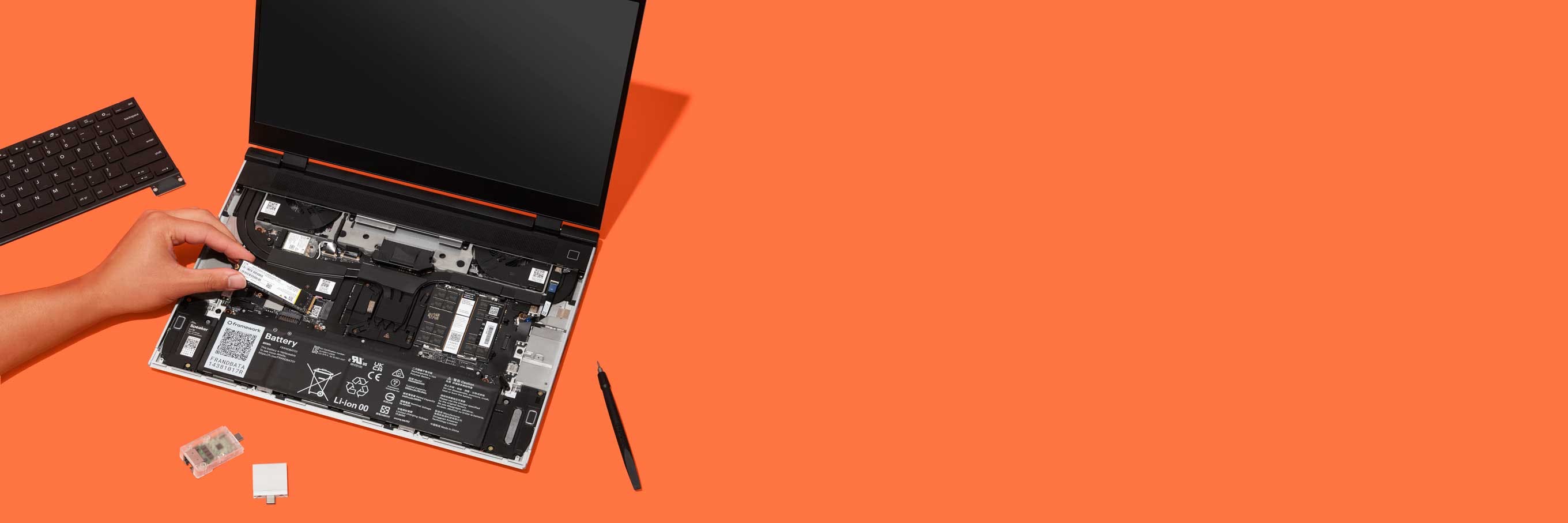

Top-down studio shot of a Framework Laptop 16 with a person installing a component on an orange backdrop.

Already an owner?
Do it yourself.

Pick up all these upgrades from our Marketplace to extend the life of your existing Framework Laptop 16.

Original generation

Processor

AMD Ryzen™ 7 7840HS

Up to 5.1GHz
8 cores/16 threads
24MB cache

AMD Ryzen™ 9 7940HS

Up to 5.2GHz

8 cores/16 threads

24MB cache

Graphics Module

Radeon™ RX 7700S (1st Gen)

32 compute units

100W TGP

8GB 18Gbps GDDR6 memory

USB-C port with DP Alt Mode

Power Adapter

180W GaN USB-C

Connectivity

AMD RZ616 Wi-Fi 6E

Webcam (1st Gen)

1080p 60fps webcam with hardware privacy switch
