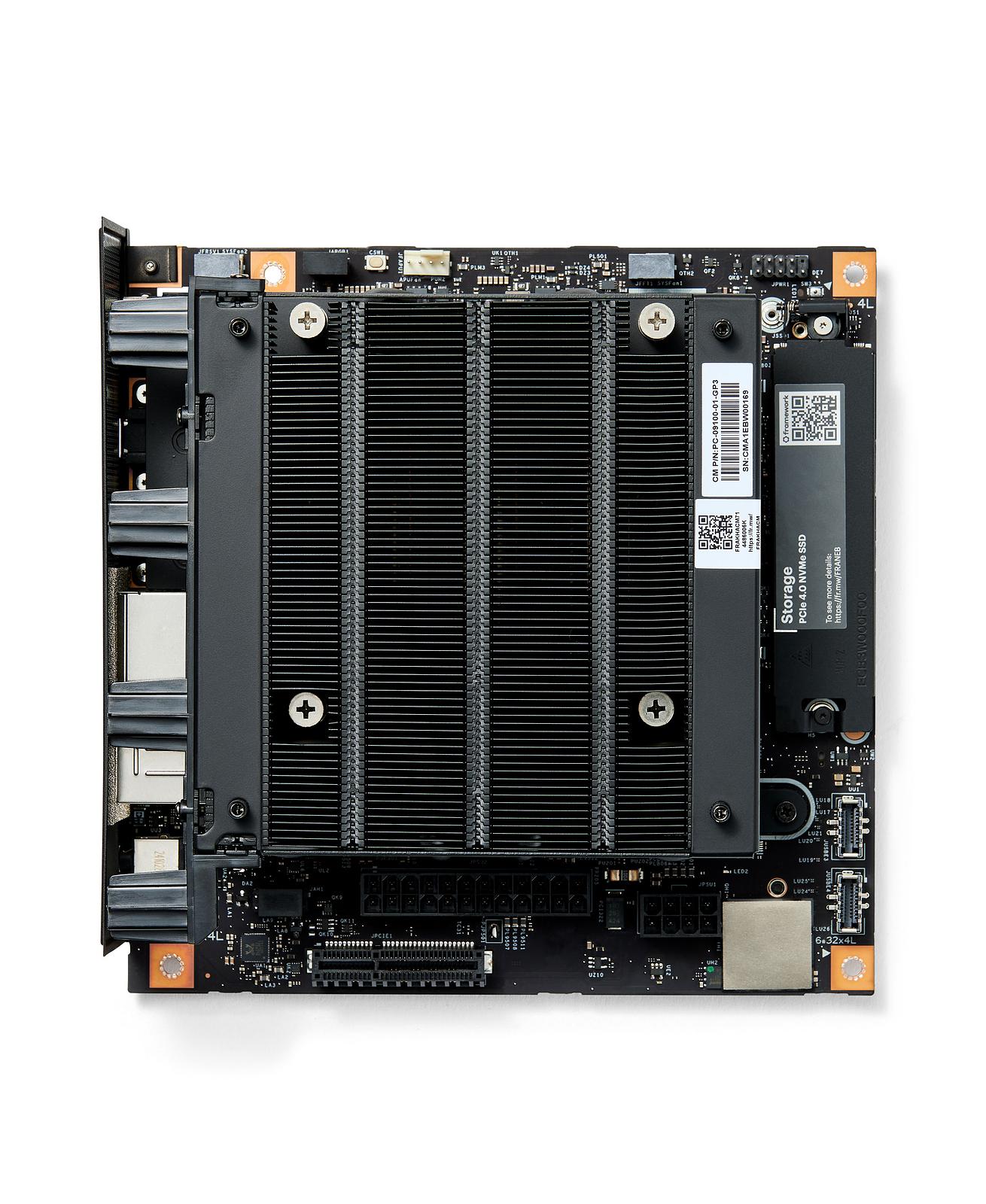

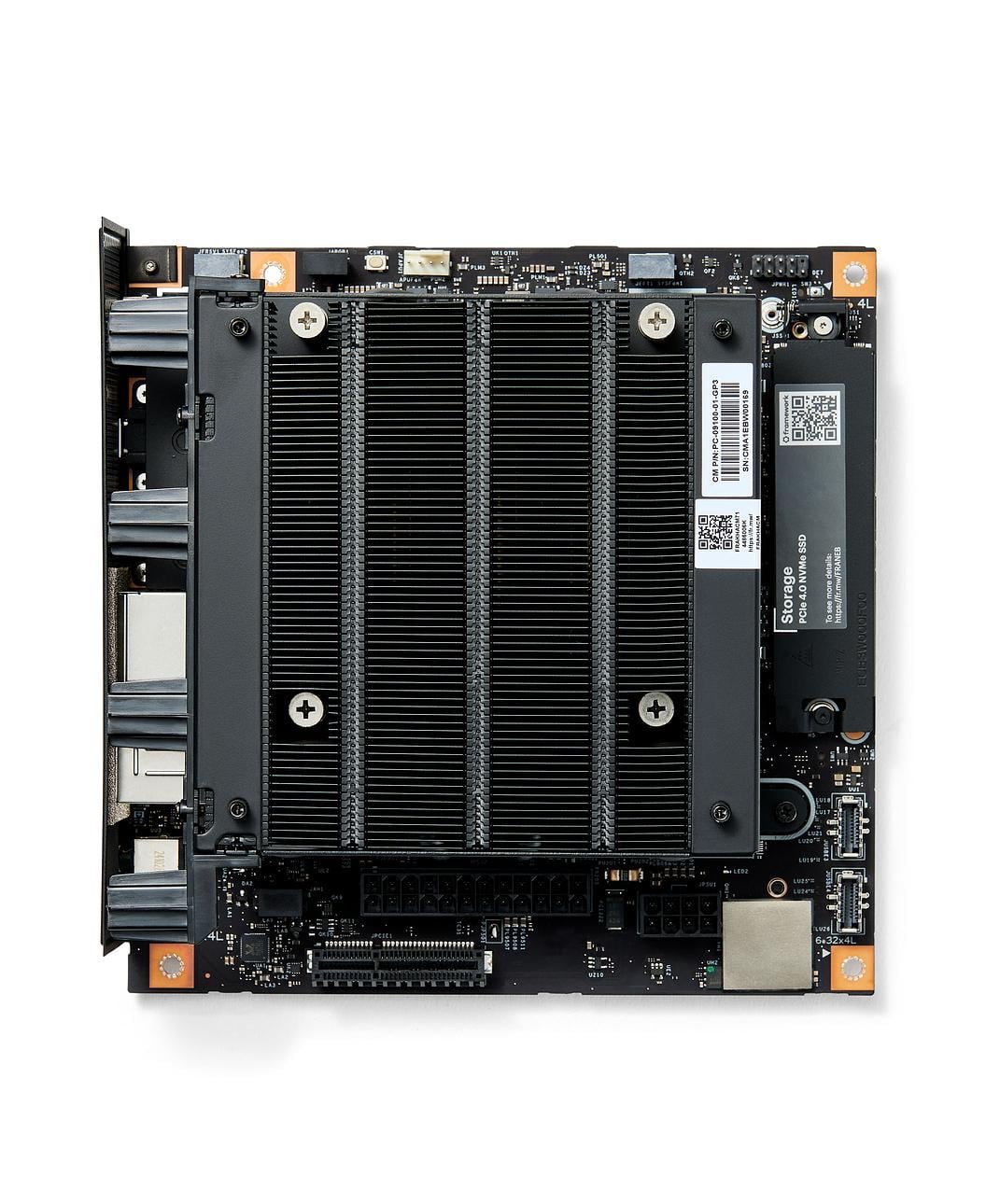

Framework Desktop Mainboard (AMD Ryzen™ AI Max 300 Series)

PC Parts. Your pick.

The Framework Desktop Mainboard is compatible with all Framework Desktop parts or can be used with a standard Mini-ITX case, ATX Power Supply, and 120mm CPU Fan, letting you mix and match with the best of the wide open PC ecosystem. This Mainboard comes pre-installed with the heatsink.

Plug into the PC ecosystem.

The Framework Desktop Mainboard has standardized Mainboard connectors, making it easy for you to use with third-party parts.

3x Standard 4-pin fan header (Standard PWM)
1x Standard 9-pin header (Front Panel Header)
2x 20-pin USB Type-E header (Front panel USB header)
1x Standard 9-pin header (Front panel audio header)
1x Standard 4-pin header with 3 signals (ARGB header)
1x RTC Battery connector (Molex 51021-8602, RTC Battery is preinstalled)
1 x PCIe x4 slot (not exposed on default case)

Compatibility

We recommend a 500W or higher ATX, SFX, or FlexATX power supply to handle maximum peak load, though continuous load will stay under 350W.

For the 120mm fan, we recommend a minimum of 85.1 CFM air flow and 3.82 mmH2O air pressure.

For heatsink, fan, and Mainboard clearance, you'll need to use a case that has at least 92mm of interior height.

Powering AI, for real.

Run legit, state-of-the-art AI models like Llama 70B right on your desk with up to 96GB of graphics addressable memory and a 256-bit memory bus.

Need a cluster? Framework Desktop has 5Gbit Ethernet along with two USB4 ports, allowing networking multiple together to run even larger models with llama.cpp RPC. Grab a few Mainboards and build it into your own mini-racks or standard rackmount server cases for high density.
