Dual M.2 Adapter Bundle

Upgrade your Framework Laptop 16 with two additional M-key M.2 modules in sizes from 2230 to 2280. The most common use case for this is adding NVMe SSDs, letting you load up to an additional 16TB of storage! The Dual M.2 Adapter drops into the Framework Laptop 16 Expansion Bay Shell and requires a Graphics Module Interposer to interface to the system. You’ll also need to update your BIOS to 3.05 or newer for compatibility.

You can access the installation guide here.

Included items:

Dual M.2 Adapter

Graphics Module Interposer

If you previously purchased the Expansion Bay Shell, you likely have Expansion Bay Shell Interposer, and will need to pick up the Graphics Module Interposer.

Expansion Bay Shell

If you previously purchased the Framework Laptop 16 Graphics Module, you will need to purchase an Expansion Bay Shell.

1st Additional Storage Option

WD_BLACK™ SN850X NVMe™ - M.2 2280

2nd Additional Storage Option

WD_BLACK™ SN770 NVMe™ - M.2 2280

3rd Additional Storage Option

WD_BLACK™ SN770M NVMe™ - M.2 2230

Est. total
$39.00
info
30-day return guarantee 30-day return guarantee
verified_user 1-year limited warranty

Highlights

Dual M.2 Adapter
Mounting Flexibility

The Dual M.2 Adapter has mounting holes to support 2230, 2242, 2260, and 2280-sized M.2 modules with M-key interfaces.

Inserting Dual M.2 Adapter
High speed interface

The Expansion Bay system enables the Dual M.2 Adapter to support two 4-lane PCIe 4.0 devices. That means high speed SSDs run with excellent performance, and you can bring other devices like AI accelerators and FPGAs too.

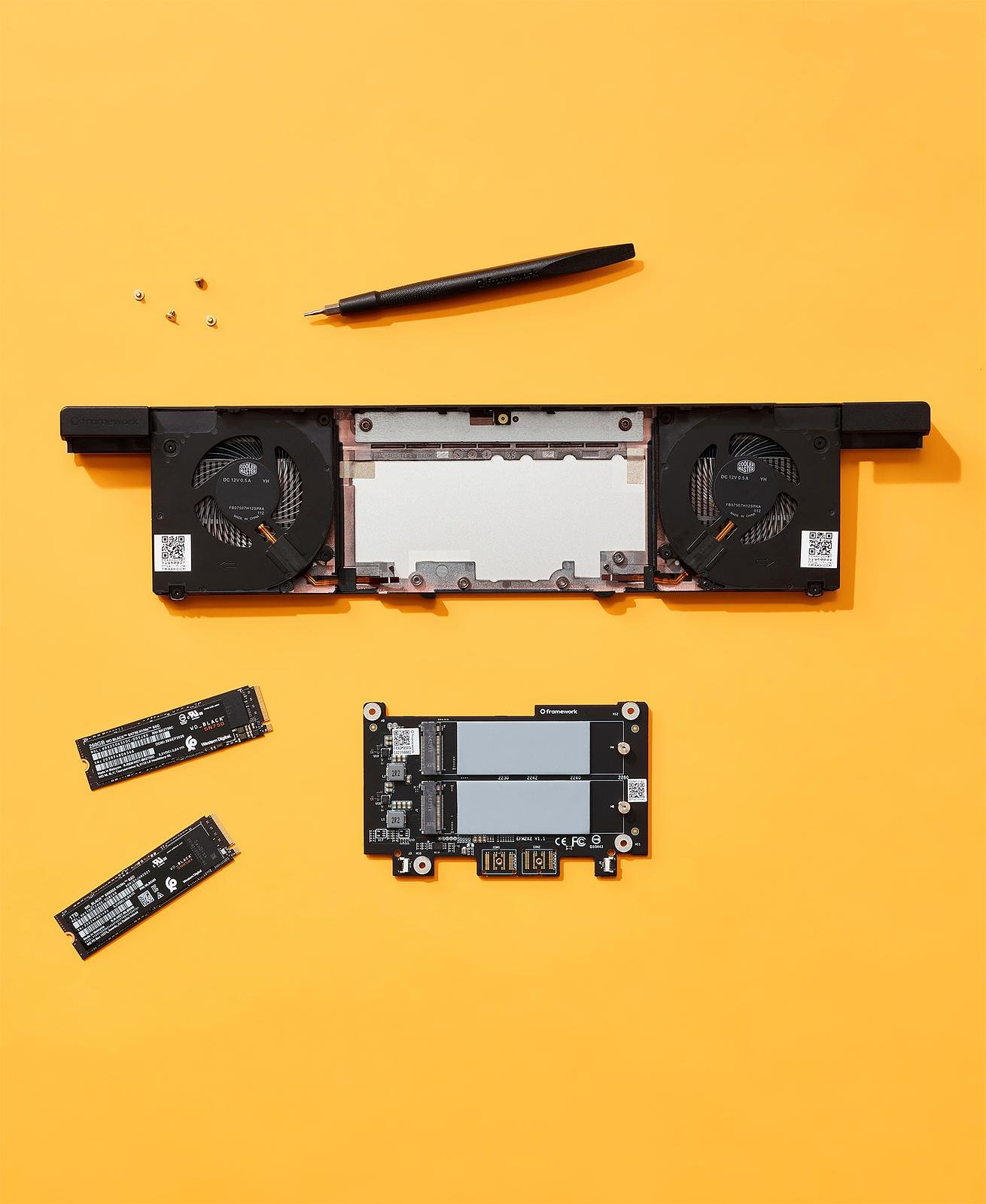

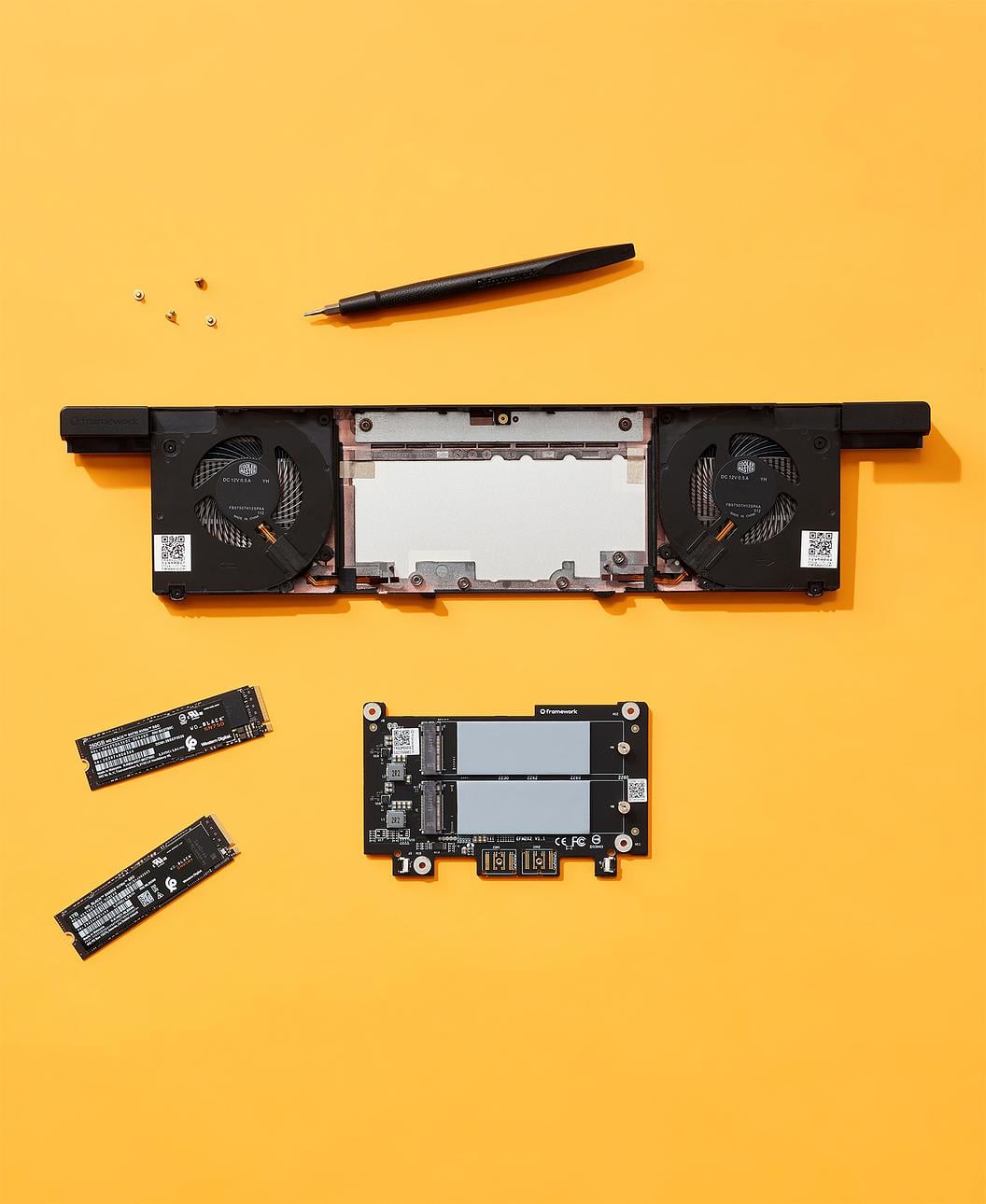

Dual M.2 Adapter bundle parts
Integrated thermal management

The Dual M.2 Adapter comes with a kit of thermal pads, allowing you to run high-performance NVMe SSDs with reduced risk of throttling under heavy workloads.

Basic starter bundle:

  • Dual M.2 Adapter
  • Framework Laptop 16 Graphics Module Interposer
  • Framework Laptop 16 Expansion Bay Shell
  • WD_BLACK™ SN770 NVMe™
  • WD_BLACK™ SN770M NVMe™
  • WD_BLACK™ SN850X NVMe™
Can I install this in my Framework Laptop 16 Graphics Module?

No, you can only install it in a Framework Laptop 16 Expansion Bay Shell.

Which interposer do I need to install the Dual M.2 Adapter?

You need the Graphics Module Interposer. If you previously purchased the Expansion Bay Shell, you likely have Expansion Bay Shell Interposer, and will need to pick up the Graphics Module Interposer from the Marketplace.

What if I want to add even more additional storage?

If you'd like additional storage or to add more than one of the above modules, you can either increase the quantity in your cart or head over to the Framework Marketplace to browse our other storage options. Please note that the adapter only fits up to two M.2 modules at any given time.
