Framework Laptop 16

Framework Laptop 16 DIY Edition (AMD Ryzen™ 7040 Series)
View product details open_in_new

Configuration

check_circle error_outline System

Choose an option

FAQs

  • Currently, we only allow one laptop per pre-order, but there is no limit on the number of pre-orders per account. Once a configuration is in stock, you can add up to five laptops per order. If you need more or have special requests, please contact us through our support form and we’ll reach out to you.
  • Yes! If you ever need more performance in the future, you can upgrade to a new Framework Laptop 16 Mainboard with a new CPU on it. We publish step by step guides you can follow to do the upgrade yourself.
  • WiFi 6E is the latest standards that adds a new 6GHz frequency band. This band allows for even higher throughput and is less congested than existing WiFi bands. You'll need a WiFi 6E compatible wireless network to get maximum performance, but the card is compatible with existing 2.4GHz and 5GHz WiFi 6 and older networks.
expand_more
check_circle error_outline Memory

Choose an option

FAQs

  • Yes! The Framework Laptop 16 is fully upgradeable, so you can easily add more memory or storage at any point in the future if you need to. We sell these modules in the Framework Marketplace, but you can also pick up compatible modules elsewhere. We publish step by step guides you can follow to do the upgrade yourself.
  • Framework Laptop 16 supports two slots of DDR5 SO-DIMM memory at the recommended native DDR5-5600 speed, with a maximum capacity of up to 96GB. While memory that meets that standard should work, the memory we sell in the Framework Marketplace is tested for compatibility. We recommend avoiding XMP DDR5.
expand_more
check_circle error_outline Primary Storage

Choose an option

FAQs

  • The amount of storage space you need depends on your use cases, but 1TB is the most popular selection. If you ever need more space in the future, you can add a secondary storage drive or upgrade your primary storage drive.
  • SN850X is Western Digital's top-end SSD, using NVMe Gen4 to support an incredible 7,300MB/s maximum read throughput. SN770 is a DRAM-less SSD that uses NVMe Gen4 for up to 4,000MB/s with great power efficiency. SN7100 is also DRAM-less and uses the PCIe Gen4 interface to deliver up to 7,250MB/s read speed. SN810 is an OEM (non-retail) drive similar in capability to SN850X, and SN740 is an OEM drive with similar capabilities to SN770. The configurator may show different compatible SSD models depending on stock availability.
  • There are two SSD sockets within the Framework Laptop 16. The primary socket is compatible with M.2 2280-sized NVMe SSDs while the secondary socket is compatible with M.2 2230-sized NVMe SSDs. We have drives from 250GB up to 4TB available in the Framework Marketplace. There are also drives ranging from 128GB to 8TB available elsewhere. While drives from other brands should work, we've focused our compatibility testing on Western Digital's SN740 and SN810 SSDs.
  • Framework Laptop 16 can boot off of either storage socket, so both are optional. You can populate both at the same time, but note that there are height limitations if using double-sided SSDs. Check the Knowledge Base article here for more information.
expand_more
check_circle error_outline Secondary Storage

Choose an option

FAQs

  • Framework Laptop 16 can boot off of either storage socket, so both are optional. You can populate both at the same time, but note that there are height limitations if using double-sided SSDs. Check the Knowledge Base article here for more information.
expand_more
check_circle error_outline Operating System

Choose an option

FAQs

  • Yes! We have official support for Ubuntu LTS and Fedora, along with installation guides and community support for additional distros like Manjaro and Mint.
expand_more

Expansion Bay System

check_circle error_outline Expansion Bay Module

Choose an option

FAQs

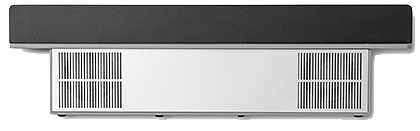

  • The Graphics Module can be populated in the Expansion Bay to enable high-performance discrete graphics for heavy gaming, creation, and simulation workloads. The Expansion Bay Shell is the default Expansion Bay Module that provides cooling to the system, and has an empty card area for accessories.
  • Yes! If you ever need more graphics performance in the future or if you purchase your Framework Laptop 16 with only an Expansion Bay Shell, you can upgrade to a new Graphics Module with a new GPU installed. We publish step-by-step guides you can follow to perform the upgrade yourself.
expand_more

Customization

check_circle error_outline Keyboard

Choose an option

FAQs

  • All Framework Laptop 16 keyboards are backlit and have 1.5mm key travel. They're designed for flexibility and performance, supporting NKRO and leveraging open source QMK firmware on a Raspberry Pi RP2040 microcontroller. The keycaps are made from 30% post-consumer recycled plastics and use a water-based paint process to minimize environmental impact.
  • Yes, you can use hotkeys or QMK-compatible utilities to cycle through lighting effects or create custom effects.
expand_more
check_circle error_outline Input Modules

Choose an option

FAQs

  • While you can order as many input modules as you'd like, at one time, the Framework Laptop 16 can utilize 1 keyboard + 2 small input modules or 1 keyboard + 1 medium input module.
expand_more
You need to select 2 Spacers or 1 Medium Input Module to configure your laptop. Top row modules and their positions can be swapped at any time. The bottom row cannot be customized with other modules and must use the default Touchpad Module and 2 aluminum Touchpad Spacers. You will have the option to add extra modules later.
Choose first spacer
Choose second spacer
check_circle error_outline Bezel

Choose an option

expand_more
check_circle error_outline Power Adapter

Choose an option

FAQs

  • Framework Laptop 16 supports USB-C power adapters up to 240W. We recommend at least a 180W power adapter if using a Graphics Module, and at least a 100W power adapter if not. Note that power adapters above 100W need to support USB-PD 3.1, also known as EPR.
expand_more
check_circle error_outline Power Adapter Region

Choose an option

expand_more

Expansion Cards

check_circle error_outline Expansion Cards

Choose any number

FAQs

  • Framework Expansion Cards allow you to customize the ports and functionality of the Framework Laptop 16. Unlike other notebooks that require adapters and dongles to get to the ports you need, you can select the ones you want at order time and change them whenever you’d like. The Framework Laptop 16 supports six simultaneous Expansion Cards, with three on each side. You can select up to six USB-A, USB-C, HDMI, DisplayPort, MicroSD, Ethernet, Audio, 1 TB storage, or 250 GB storage cards to fit your needs.
  • The Framework Laptop 16 charges over USB-C from the back four Expansion Card bays. We suggest configuring with at least one USB-C Expansion Card, since it is difficult to directly plug into the recessed USB-C receptacle that is inside the bay.
  • Yes, if you plan to use wired 3.5mm headphones, you will need an Audio Expansion Card. You can also use Bluetooth headphones or USB headphones without an Audio Expansion Card.
  • You can, but we don't recommend it. There are six Expansion Card slots on the Framework Laptop 16, so we suggest you have one for each.
expand_more
Each card can be used in any of the 6 Expansion Card bays on the Framework 16 Laptop.

We suggest ordering 6 or more Expansion Cards. At least one Expansion Card should be USB-C to charge the laptop, and if an auxiliary audio/headphone jack is needed, an Audio Expansion Card, as there is no built-in jack with the Framework Laptop 16.

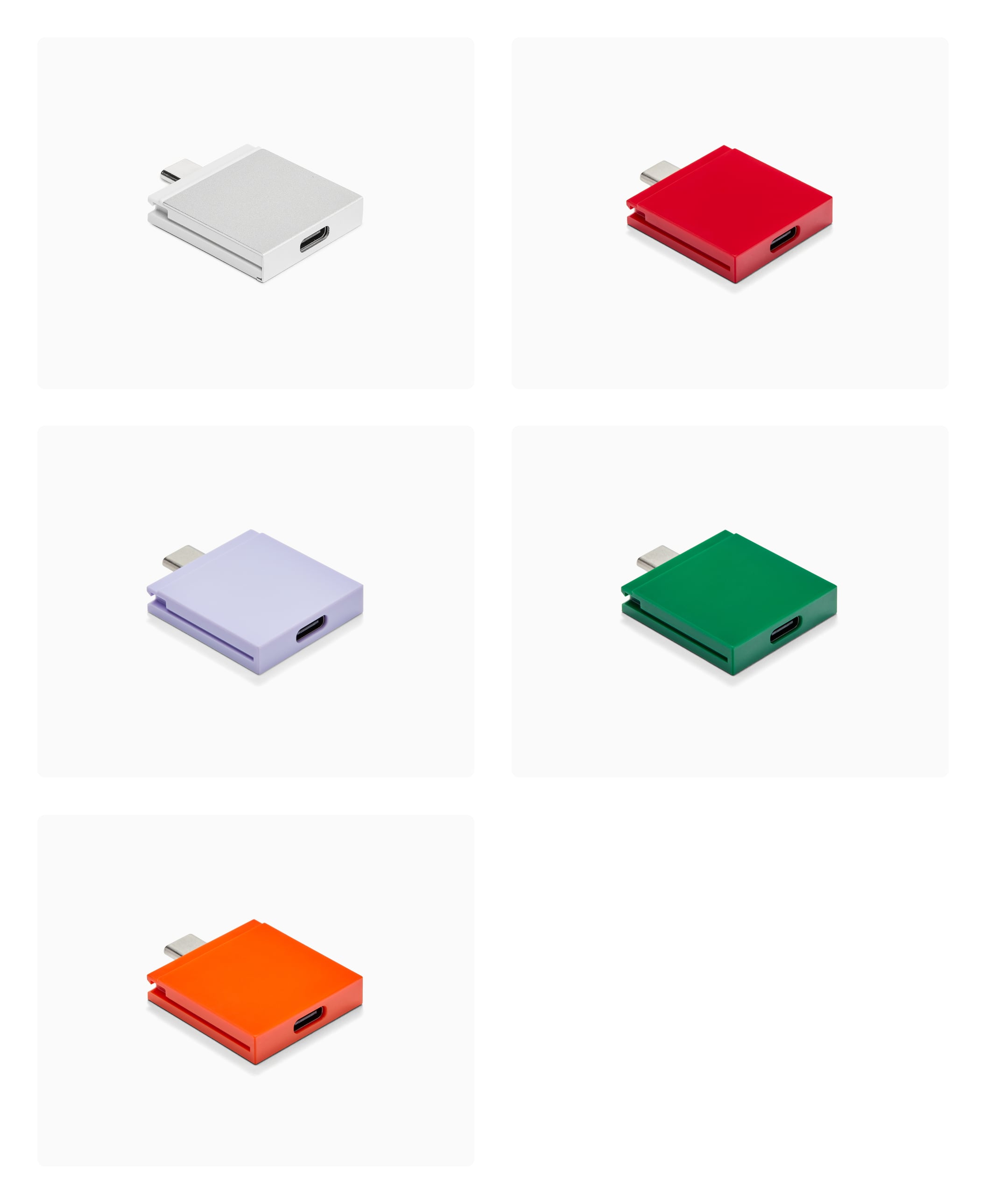

USB-C Expansion Cards (multiple colors available)
USB-C new colors available
+$11
Port Expansion Cards
USB-A
USB-A Expansion Card

USB-A Expansion Card

Giving you access to the broad range of USB-A devices in the world at up to USB 3.2 Gen 2 speeds.

+$11
HDMI (3rd Gen)
HDMI (3rd Gen) Expansion Card

HDMI (3rd Gen) Expansion Card

The HDMI (3rd Gen) Expansion Card has been reoptimized to reduce system power consumption, improving battery life. Supports HDMI 2.0b for resolutions up to 4k 60Hz, along with audio output.
+$22
DisplayPort (2nd Gen)
DisplayPort (2nd Gen) Expansion Card

DisplayPort (2nd Gen) Expansion Card

The DisplayPort (2nd Gen) Expansion Card has optimized firmware to reduce system power consumption, improving laptop battery life.
+$19
Ethernet Expansion Card
Ethernet Expansion Card

Ethernet Expansion Card

Supporting 2.5Gbit/s and 10/100/1000Mbit/s Ethernet, the Ethernet Expansion Card gives you ultra fast and reliable networking over an RJ45 jack.  The clear housing lets you peek at the RTL8156 controller that powers it.

+$39
MicroSD (2nd Gen) Expansion Card
MicroSD Expansion Card

MicroSD Expansion Card

Supporting MicroSD UHS-I and UHS-II cards. Designed to reduce power consumption when a card is not inserted.
+$19
SD
SD Expansion Card

SD Expansion Card

The SD Expansion Card supports UHS-I and UHS-II, letting you transfer data to and from SD Cards of all available capacities.
+$25
Audio - Audio Expansion Card
Audio Expansion Card

Audio Expansion Card

The Audio Expansion Card contains a 3.5mm headphone jack, which supports audio input and output. This Expansion Card provides increased dynamic range and improved signal to noise ratio in comparison to the Framework Laptop 13 built-in audio jack.
+$19
Storage Expansion Cards
250GB (2nd Gen)
250GB (2nd Gen) Expansion Card

250GB (2nd Gen) Expansion Card

The 250GB (2nd Gen) and 1TB (2nd Gen) Expansion Cards give you the performance of an internal drive with the flexibility of an external one. With a USB 3.2 Gen 2 interface, both the 1TB (2nd Gen) and 250GB (2nd Gen) cards reach 1000 MB/s read and 800 MB/s write speeds. Both are fast enough to run apps and even boot an operating system from, and you can plug them into other computers for high-speed file transfer.
+$45
1TB (2nd Gen)
1TB (2nd Gen) Expansion Card

1TB (2nd Gen) Expansion Card

The 250GB (2nd Gen) and 1TB (2nd Gen) Expansion Cards give you the performance of an internal drive with the flexibility of an external one. With a USB 3.2 Gen 2 interface, both the 1TB (2nd Gen) and 250GB (2nd Gen) cards reach 1000 MB/s read and 800 MB/s write speeds. Both are fast enough to run apps and even boot an operating system from, and you can plug them into other computers for high-speed file transfer.
+$125

Add-ons

Extra Spacers

Black
Black spacer

Black spacer

(Sold individually) Cosmetic spacers may not add functionality, but they do look cool. Pick your favorite colors, match your Bezel, or choose alternative materials. Small-sized Input Module.

+$10
Orange
Orange spacer

Orange spacer

(Sold individually) Cosmetic spacers may not add functionality, but they do look cool. Pick your favorite colors, match your Bezel, or choose alternative materials. Small-sized Input Module.

+$15
Gray
Gray spacer

Gray spacer

(Sold individually) Cosmetic spacers may not add functionality, but they do look cool. Pick your favorite colors, match your Bezel, or choose alternative materials. Small-sized Input Module.

+$15
Lavender
Lavender spacer

Lavender spacer

(Sold individually) Cosmetic spacers may not add functionality, but they do look cool. Pick your favorite colors, match your Bezel, or choose alternative materials. Small-sized Input Module.

+$15
Color shift
Color shift spacer

Color shift spacer

(Sold individually) Cosmetic spacers may not add functionality, but they do look cool. Pick your favorite colors, match your Bezel, or choose alternative materials. Small-sized Input Module.

+$20
LED Matrix
LED Matrix Input Module

LED Matrix Input Module

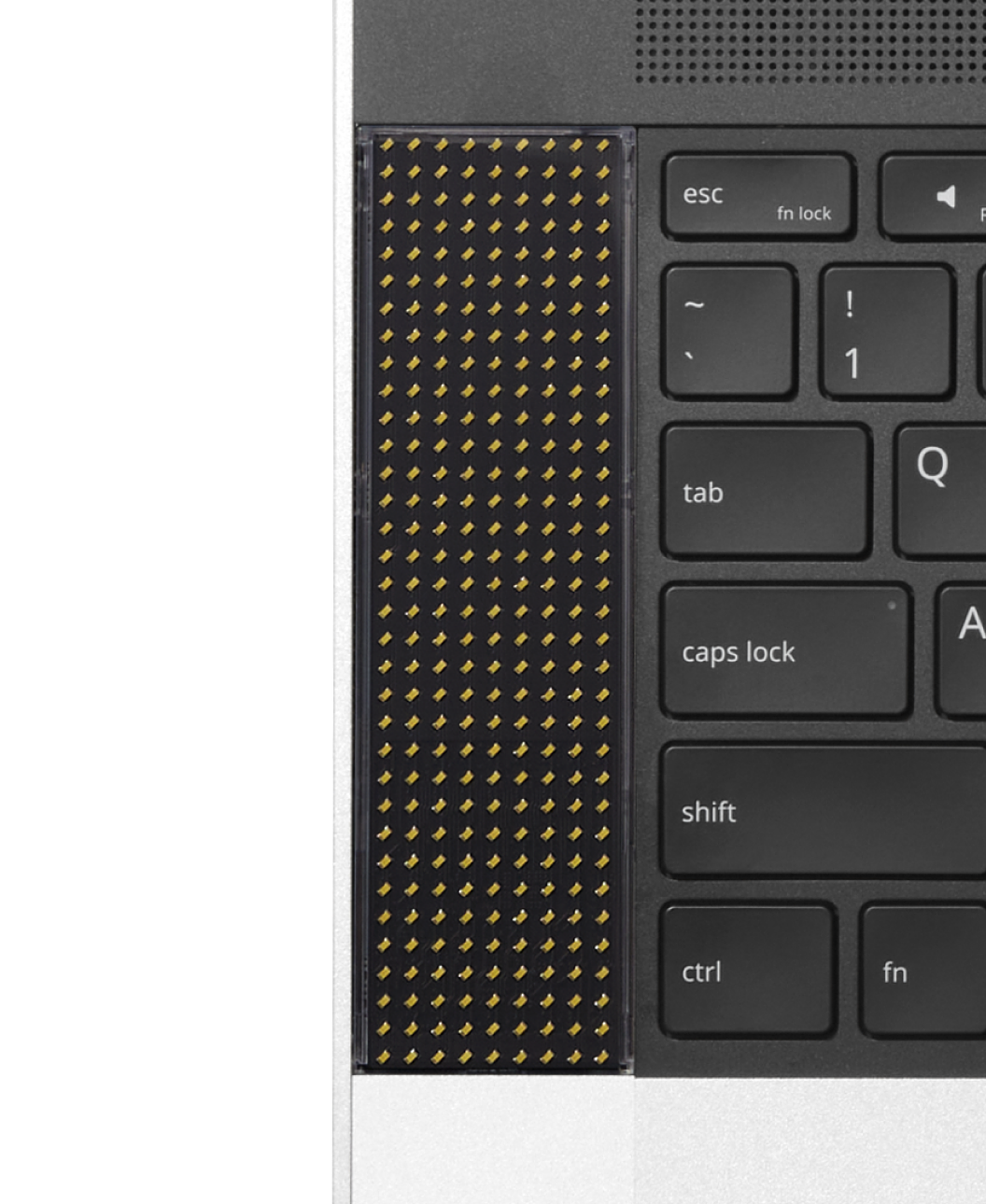

(Sold individually) The LED Matrix Input Module can be endlessly customized - track your battery life levels, set a timer, have a flashing notification alert, scroll text or even play a game of snake. The open source firmware and interface APIs make it easy for you to personalize and create your own features.

+$59

Extra Medium Input Modules

RGB Macropad Module
RGB Macropad

RGB Macropad

Clear keys with a RGB backlight. 1.5mm key travel and NKRO support. Use hotkeys or QMK utilities to cycle through lighting effects. Runs QMK firmware, enabling you to configure to any layout. Medium-sized Input Module.

+$79
Numpad Module
Numpad

Numpad

Black keys with a togglable white backlight. 1.5 mm key travel and NKRO support. Runs QMK firmware, enabling you to configure to any layout. Medium Input Module.

+$39
